0.8Mpa 90pcs/min Jam Jar Filling Machine , 7.8Kw Liquid Filling And Capping Machine

Product Categories
Fair Machinery Co., Ltd
Contact Now

0.8Mpa 90pcs/min Jam Jar Filling Machine , 7.8Kw Liquid Filling And Capping Machine

  • 1
  • 2
  • 3

Brand Name : Fair Machinery

Model Number : FCF-13A

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union. L/C

Supply Ability : 100 pcs per month

Delivery Time : 10-20 days

Packaging Details : wooden packaged

Material : 304 or 316 Stainless steel

Automatic Grade : Automatic

Key Selling Points : fully Automatic, High-accuracy, Easy to Operate

Application : Beverage, Food

Driven Type : Pneumatic

Packaging Type : CANS, Bottles, Stand-up Pouch, Film, Foil, Pouch

Filling Accuracy : ±1%

Warranty : 1 year

Core Components : PLC, Engine, Motor

Voltage : 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ

After-sales Service : video technical support, free spare parts, field installation, commmissioning and training, field maintenance and repair service, online support

Contact Now

Automatic jam, butter, coffee filling, sealing and capping machine
The machine is mainly used for filling and capping the particles of cups, boxes, bowls, etc., and can also be used for the capping of other shaped boxes. Machine production process: Automatic lower cup, automatic filling, automatic capping, automatic sealing, automatic cupping; adopting imported stepless speed changing system, adopting cam indexing device to make the lower film positioning accurately, the machine runs smoothly; the cover and the sealing are completed at the same time The lower film movement has no influence on the positioning accuracy of the cover film; the accurate secondary sealing and sealing pressure can be adjusted, the sealing strength is good; the operation is simple and safe.
Technical parameters:
Name Automatic jam, butter, coffee filling, sealing and capping machine
Products Liquid, cream, or paste
Volume 10-500ml Can be customized according to customer requirements
Precision ±1%
Pneumatic 0.6-0.8Mpa, 0.2 CBM/min
Production capacity 70-90 pcs/min
Voltage AC220V, 1 phase, 50/60Hz.
Power 7.8Kw.
Material Stainless steel 304
G.W. 900Kg.
Dimension L4000xW950xH1700mm
0.8Mpa 90pcs/min Jam Jar Filling Machine , 7.8Kw Liquid Filling And Capping Machine
0.8Mpa 90pcs/min Jam Jar Filling Machine , 7.8Kw Liquid Filling And Capping Machine

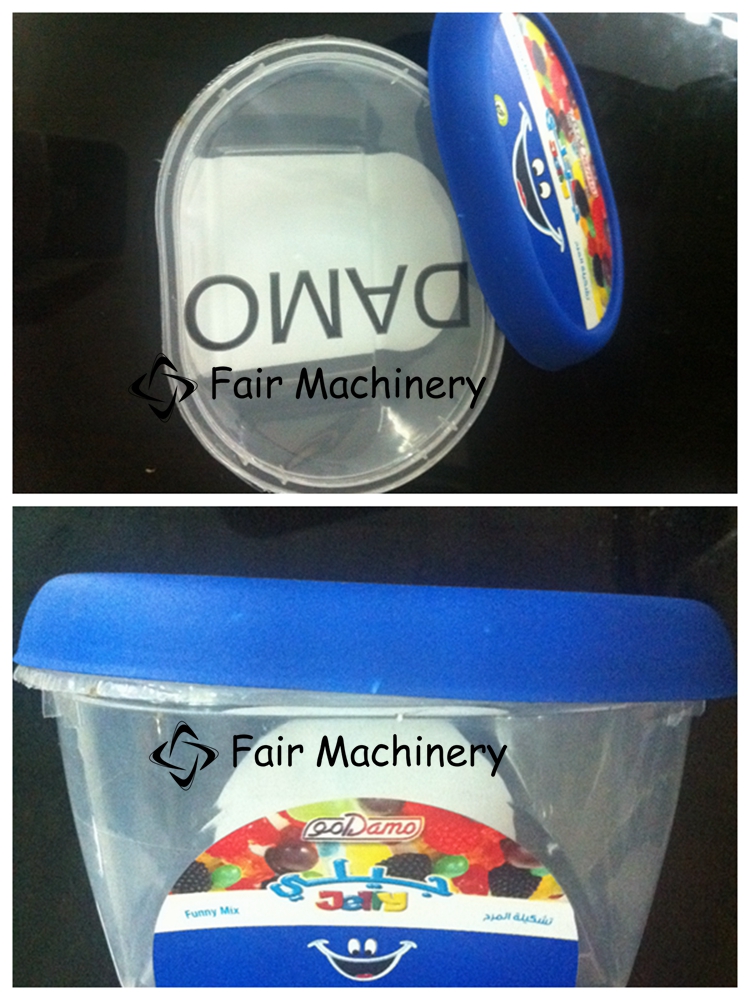

sample plate
0.8Mpa 90pcs/min Jam Jar Filling Machine , 7.8Kw Liquid Filling And Capping Machine
